Drum Washer

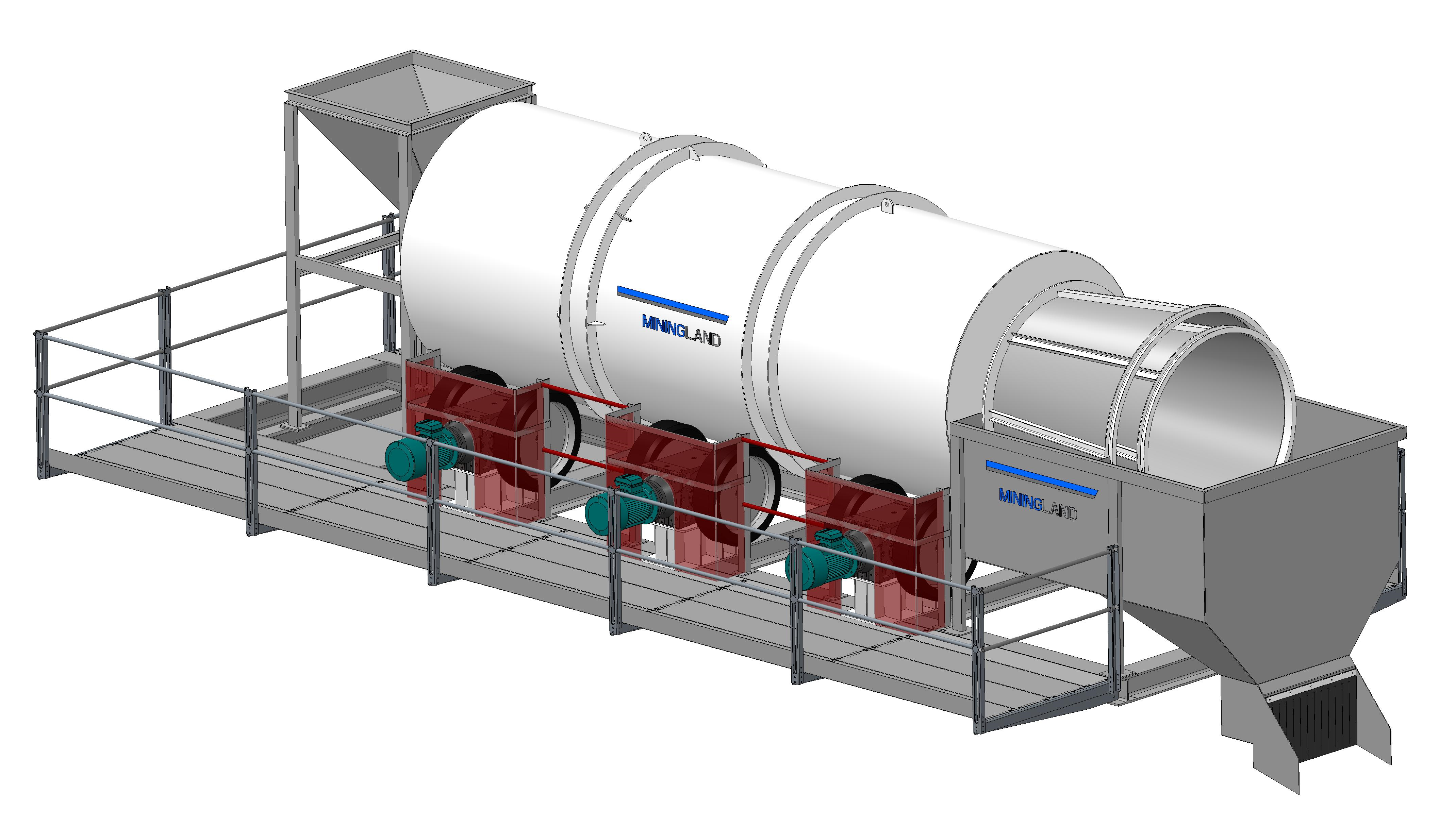

Tromel_01

In order to properly wash minerals with grain sizes up to 200mm – particularly pebbles with clay stuck thereto, the simplest, most economical solution is to use Drum Washer DW which, thanks to the attrition between the different materials and the water they contain, manage to dissolve the impurities so that they can be removed in subsequent processes.





Características

Trómeles de lavado
 Modelo   Longitud tambor mm  Diámetro tambor mm  Ruedas motrices  Ruedas portantes Potencia kw Producción Th/h*
 DW-120  5.000  2.100  6   6  3×7,5  120
 DW-160  6.000  2.300  6  6  3×11  160
 DW-240  7.000  2.500  6   6  3×15  240
 DW-320  8.000  2.600  6  6   3×18,5  320
 DW-400  9.000  2.800  8  8  4×18,5  400
DW-500  10.000  3.000  8  8  4×22  500

TROMEL_COTAS

Dimensiones

Trómeles de lavado
 Modelo   A  B  C  D E
 DW-120  2.100  5.000  2.600   8.400  2.800
 DW-160  2.300  6.000  2.600  11.300  3.100
 DW-240  2.500  7.000  2.900   11.850  3.350
 DW-320  2.600  8.000  3.400  12.700   3.575
 DW-400  2.800  9.000  4.000  13.900  3.820
DW-500  3.000  10.000  4.200  14.100  3.950
