Hydrocyclones

WS

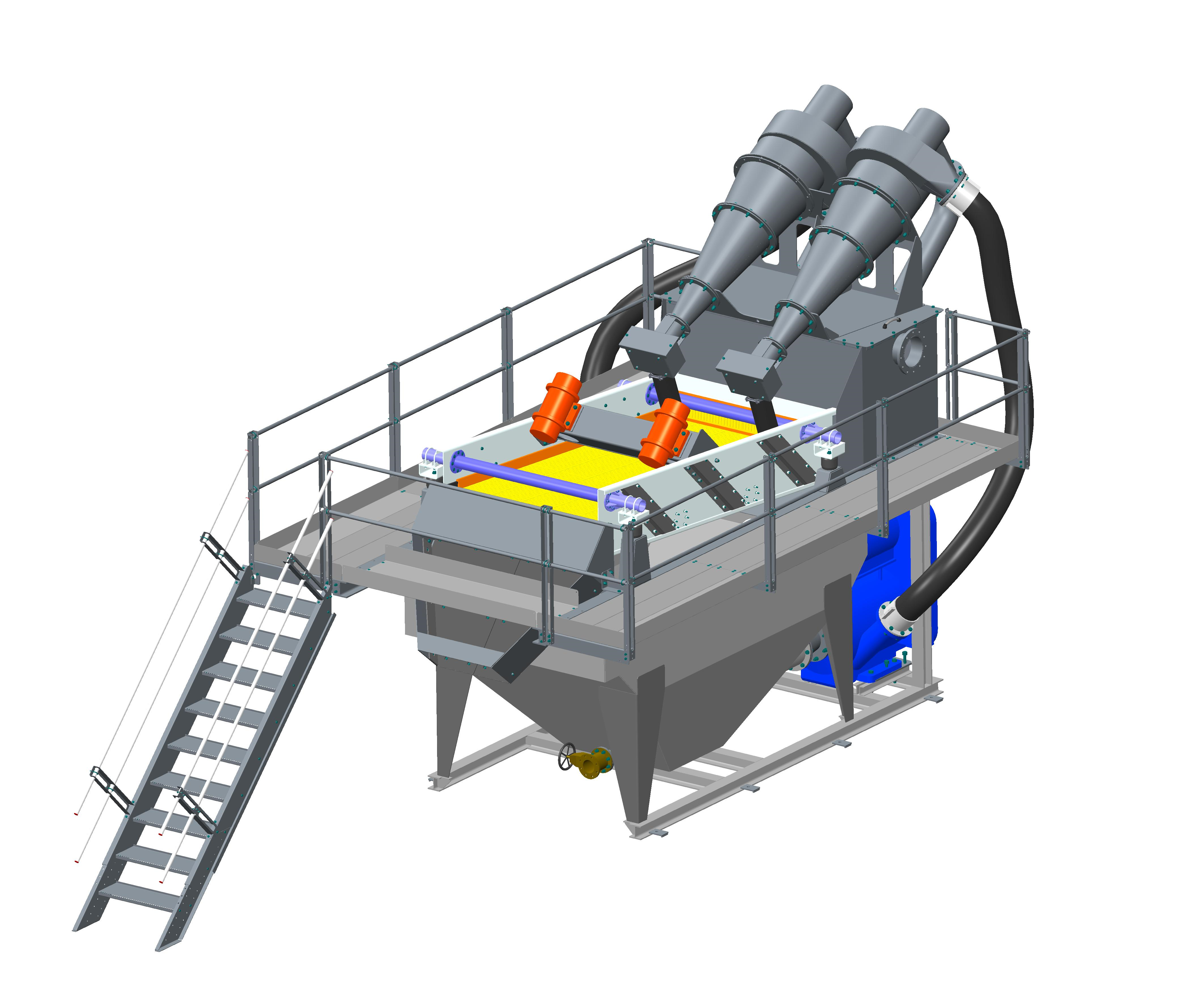

In order to build structural elements in high-strength concrete it is essential to have high-quality sand. The best thing is to have washed sand with a good fineness module, for which it is crucial not to lose particles greater than 63μm during the washing process. MININGLAND has a range of compact SW sand washers that meet all washing, fines recovery, and sand draining requirements.



WS-Plano1



MODEL CYCLONE PUMP DRAINER CAPACITY WEIGHT (Kg)
Ømm Ø Impulses Power Model Power Surface
area  (m2)
Tn/h m3/h
SW-50 1 500 1 5” 22 Kw DW-50 2 x 1,6 Kw 1,8  50 30 5.300
SW-80 1 650 1 8” 30 Kw DW-80 2 x 1,8 Kw 2..7 80 50 7.000
SW-120 1 650 1 10” 55 Kw DW-120 2 x 1,9 Kw 3.6 120 75 9.800
SW-160 2 650 2 2×8” 2×30 Kw DW-160 2 x 1,9 Kw 4.5 160 100 12.600
SW-240 2 650 2 2×10” 2×55 Kw DW-240 2 x 3,6 Kw 7.2 240 150 16.100



Dimensions

WS-Plano2



  A B C D E F G H I J
SW-50 4720 4390 3100 490 990 470 1490 3080 1730 1500
SW-80 6490 4870 4300 1090 990 570 1490 3180 1730 1500
SW-120 6490 5270 4500 1090 1290 650 1790 3180 1730 1500
SW-160 6490 4870 4300 1090 1590 750 2200 3180 1730 1500
SW-240 7490 5270 4500 1090 1890 900 2500 3580 2130 1900
